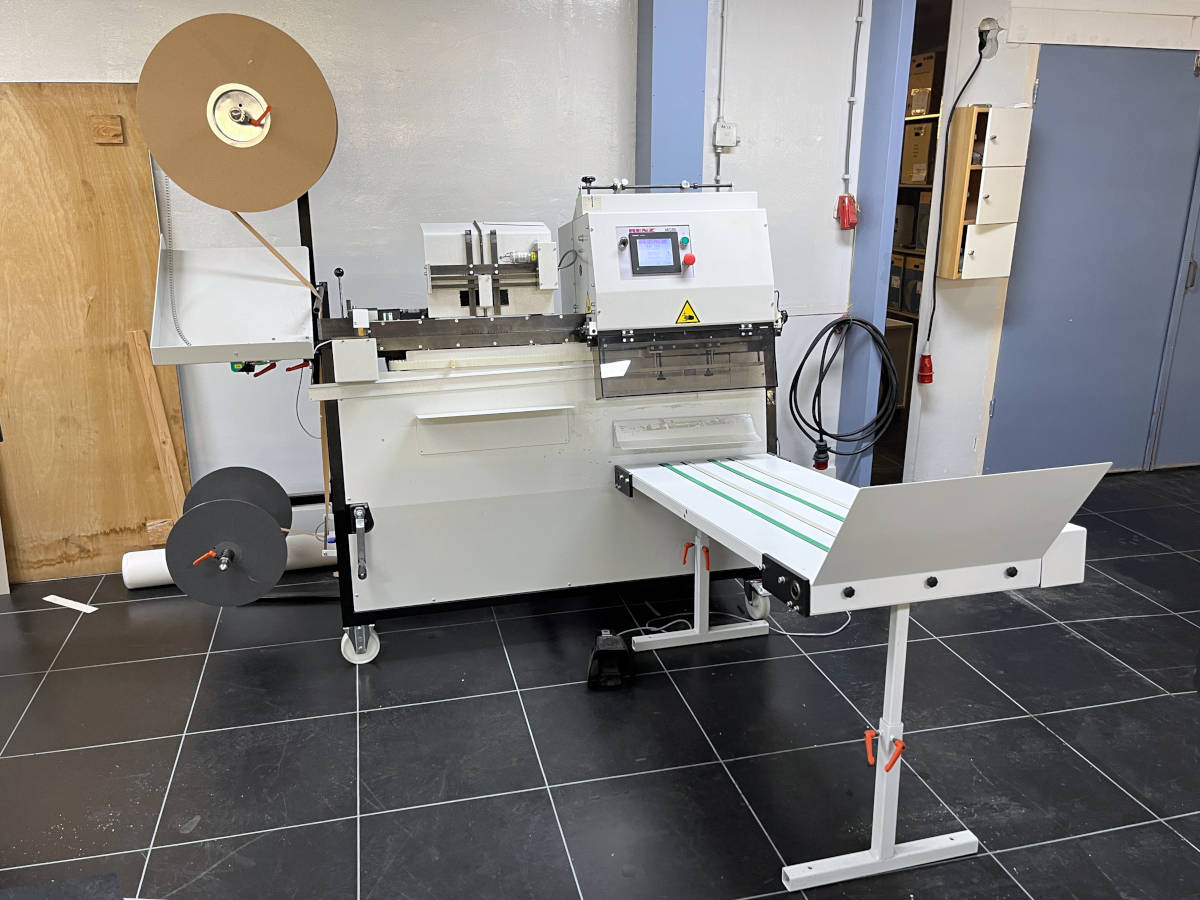

Renz Mobi 500 semi-automatic wire binding machine

Reference  2510304
Year  2013
Specifications

User friendly, flexible, semi-automatic RENZ RING WIRE® binding machine for books, calendars and skip binding

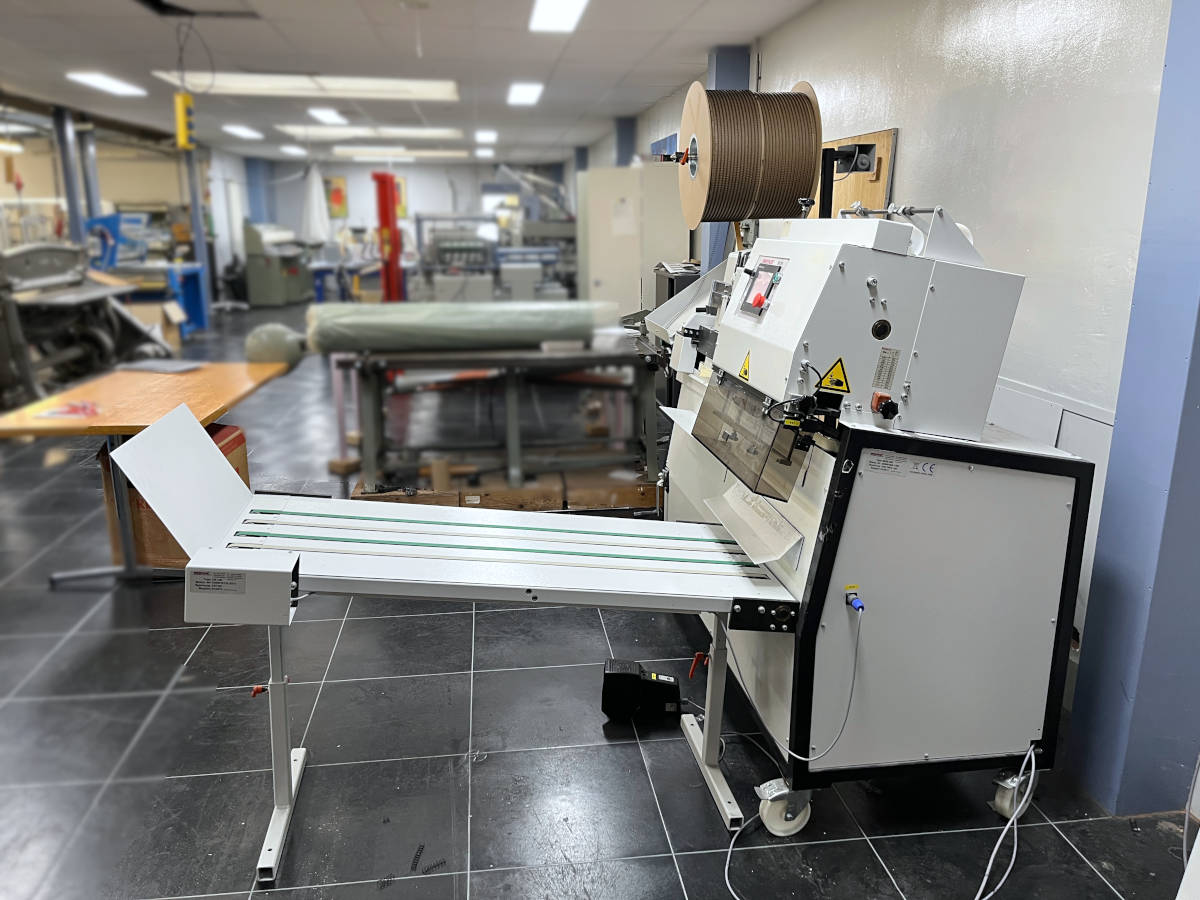

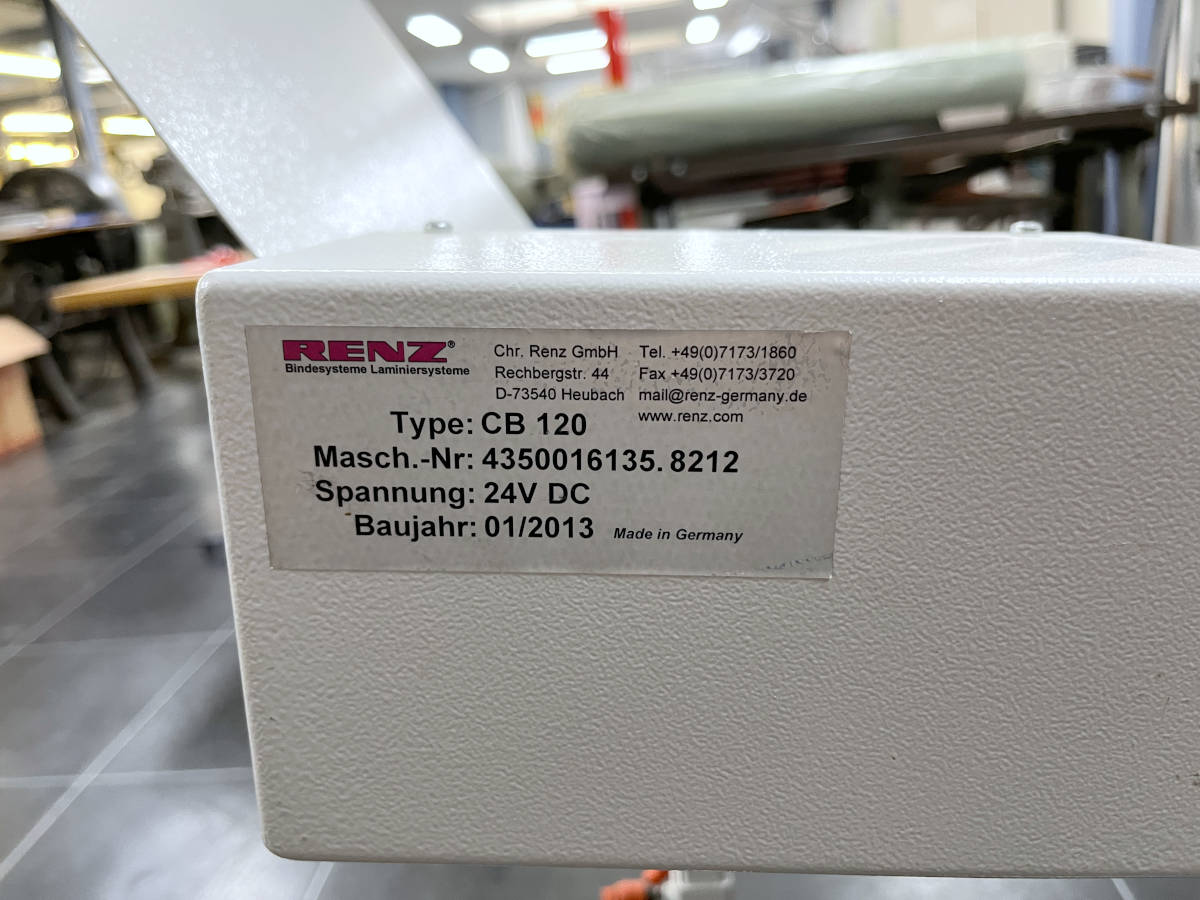

Including belt delivery Renz CB 120

• Semi-automatic ring wire binding machine for books, calendars and skip binding
• High flexibility of different paper formats
• Ability to bind oversized products

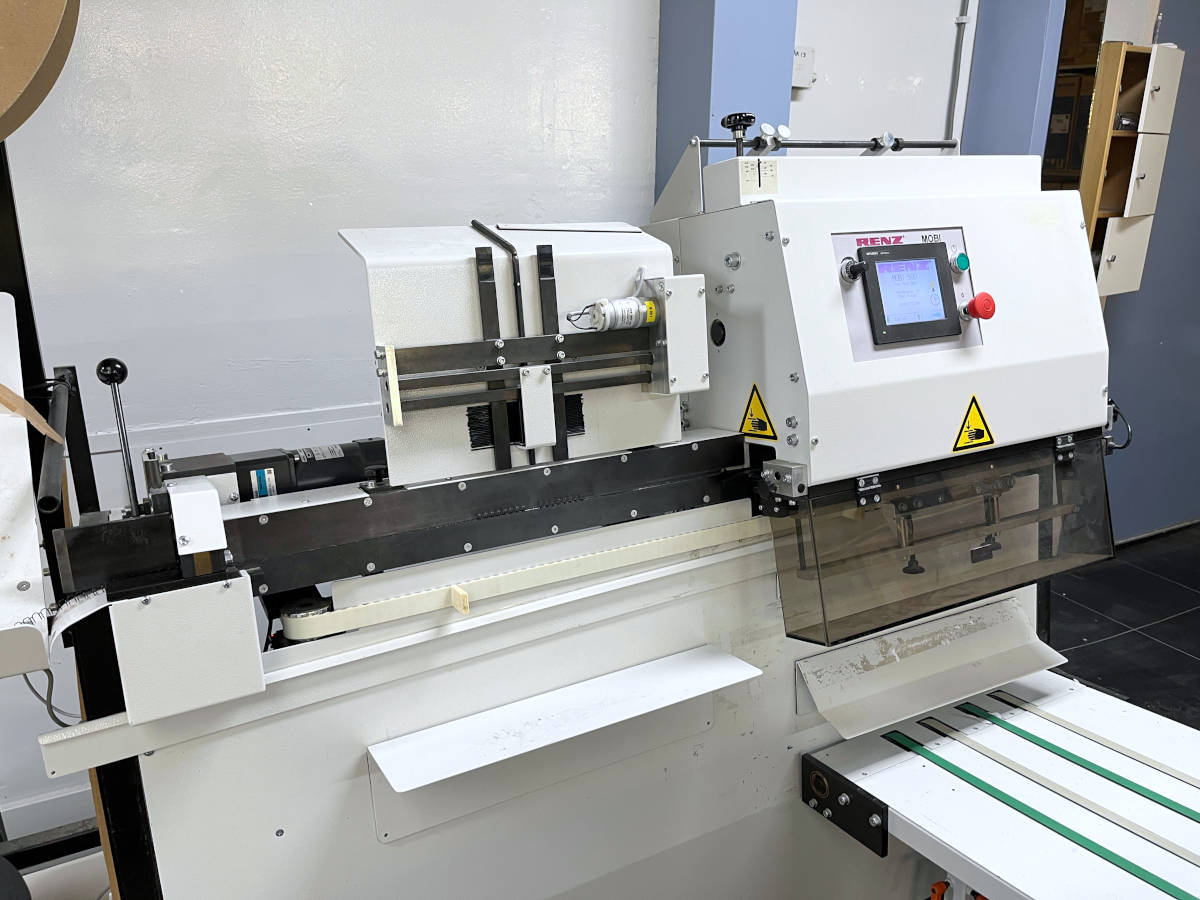

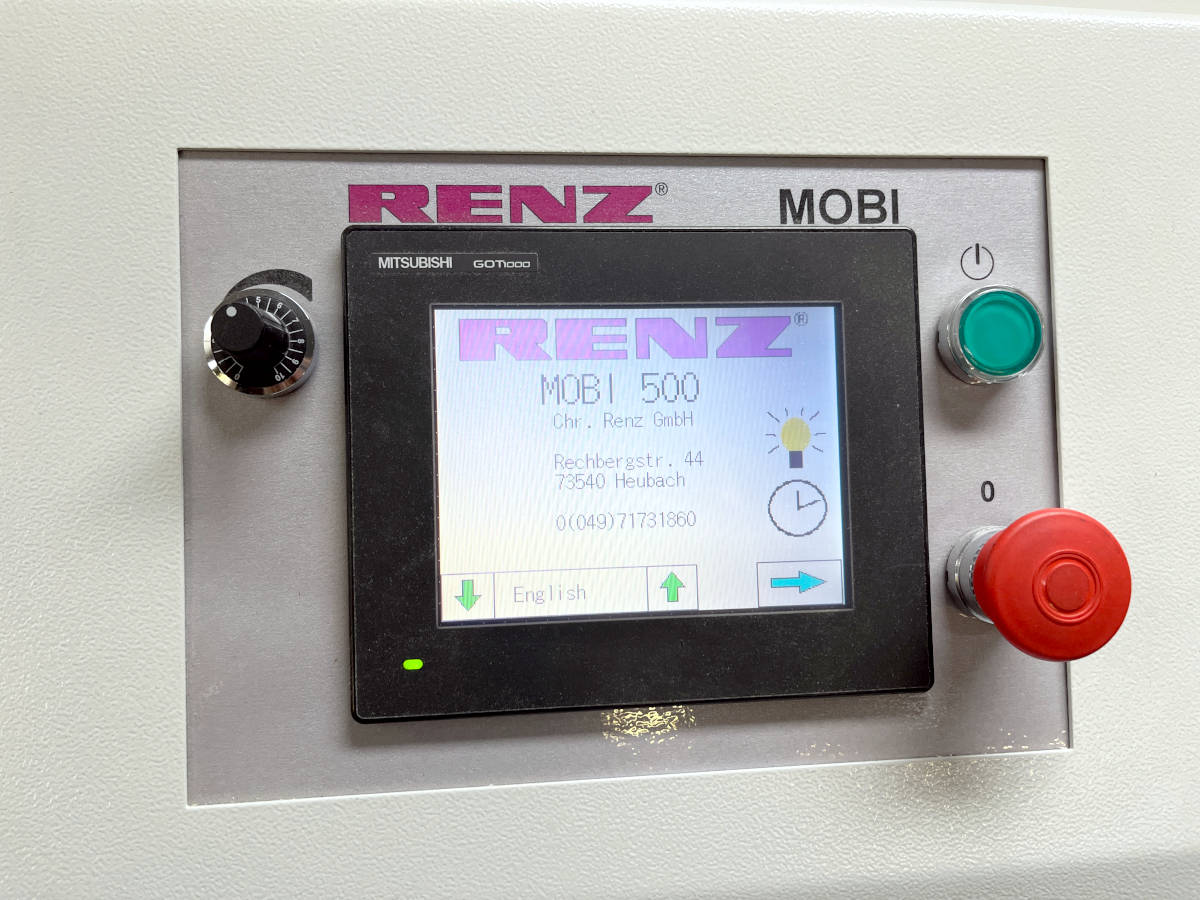

• Touch screen assisted setup process
• Short setup times no tools required
• Binds up to 260 sheets
• Product is easily loaded by hanging it on to the element
• No special training is required
• Wheels allow the machine to be moved easily

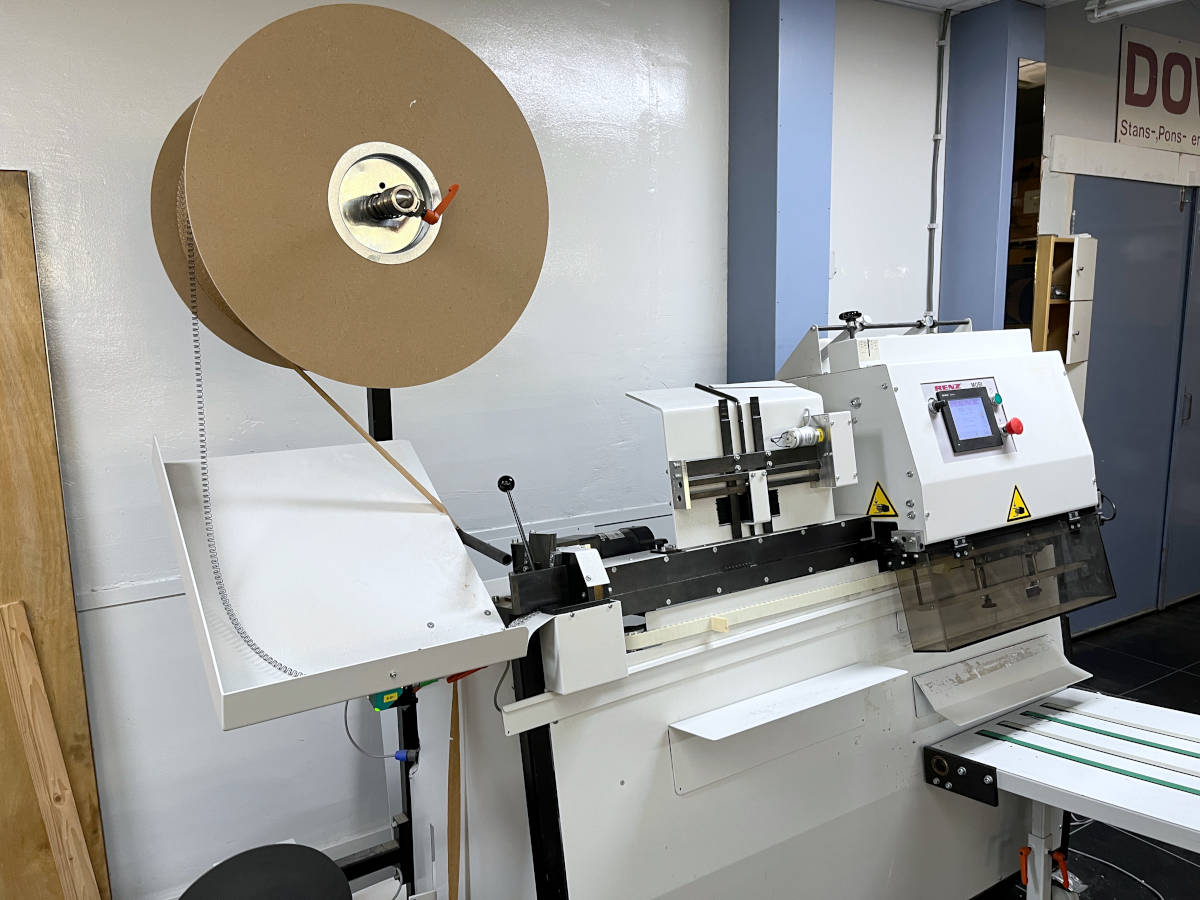

MANY, many boxes with wire-o wire spools available

Technical details
Mechanical cycles per hour 1,000
Pitch 3:1, 2:1
Binding thickness 1 – 26 mm
Binding element Ø 5.5 – 32 mm 3/16″ – 1 1/4″
Min. binding width 105 mm*
Max. binding width 500 mm
Min. unbound edge 148 mm*
Max. unbound edge 450 mm
Binding operation Foot pedal

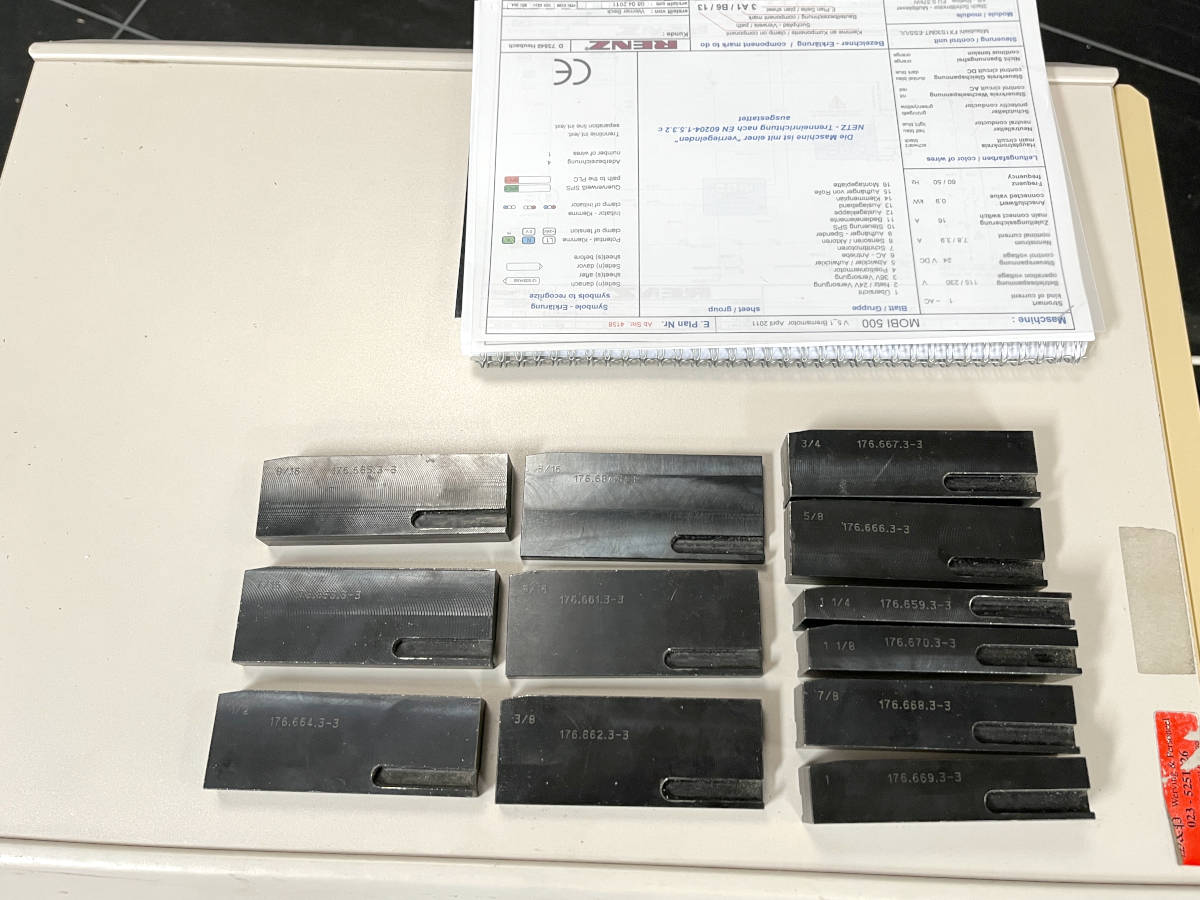

Time required for diameter change 4 – 10 min
Format change without diameter 2 min
Calendar hangers Optional
Machine dimensions L x W x H 2,200 x 1,400 x 2,000 mm
Machine weight 500 kg
Compressed air No

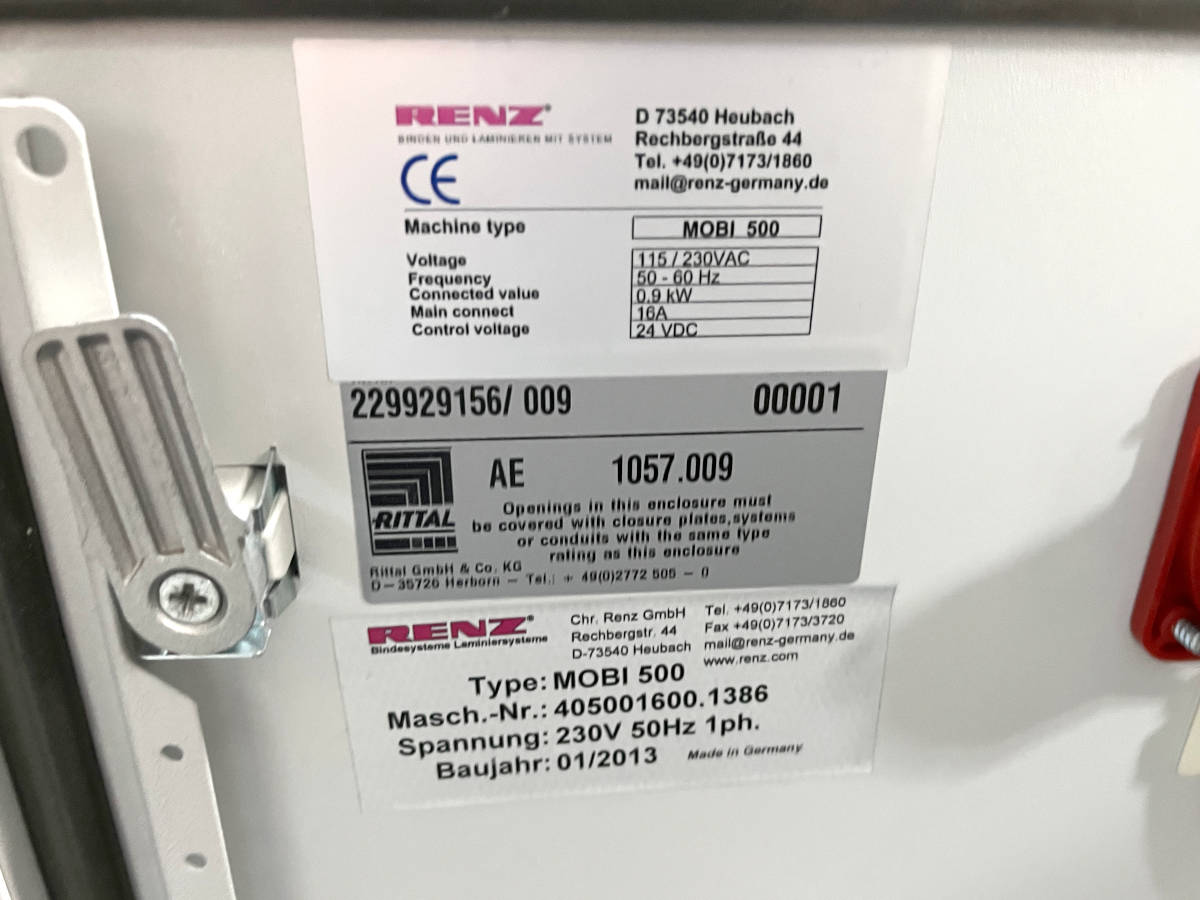

Power requirement 230V~50Hz / 1kW 115V~60Hz / 1kW

Condition used
Available from stock
