UV and waterbased coating machine

Referentie  26123455
Bouwjaar  2024
Specificaties

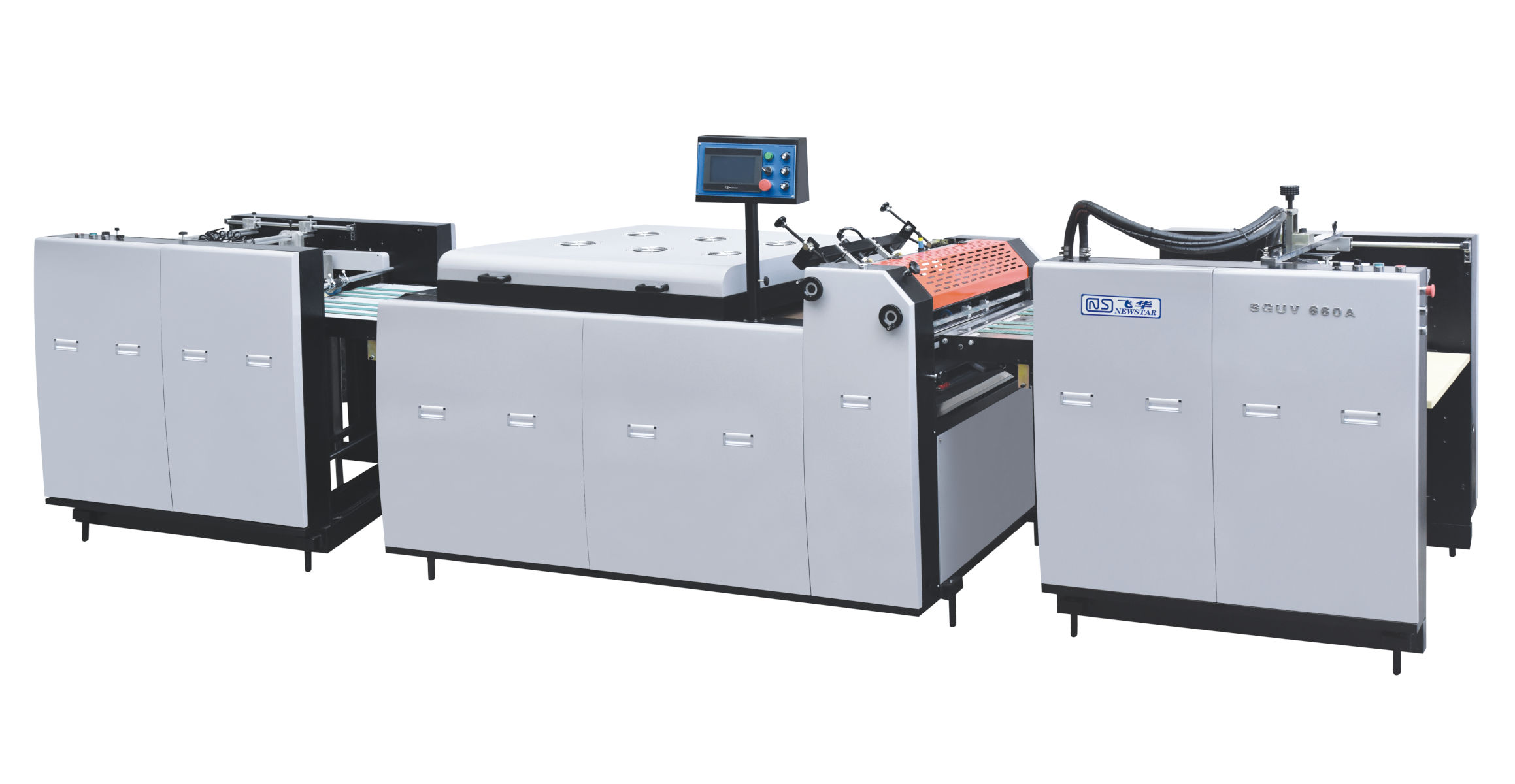

Automatic UV and waterbased varnish coating machine, suitable for B2+ format (50 x 70 cm)
Used previously as demo machine at local agent. Direct available from stock.

Technical details
Max. paper size 620 x 760 mm
Min. paper size 270 x 270 mm
Paper weight 80 – 500 gsm
Speed 0 – 60 m/min

Equipped with 1x UV lamp 6.5 kw and 6x IR lamps 1.2 kw

Weight 2000 kg
Measurements 6000 x 1450 x 1600 mm

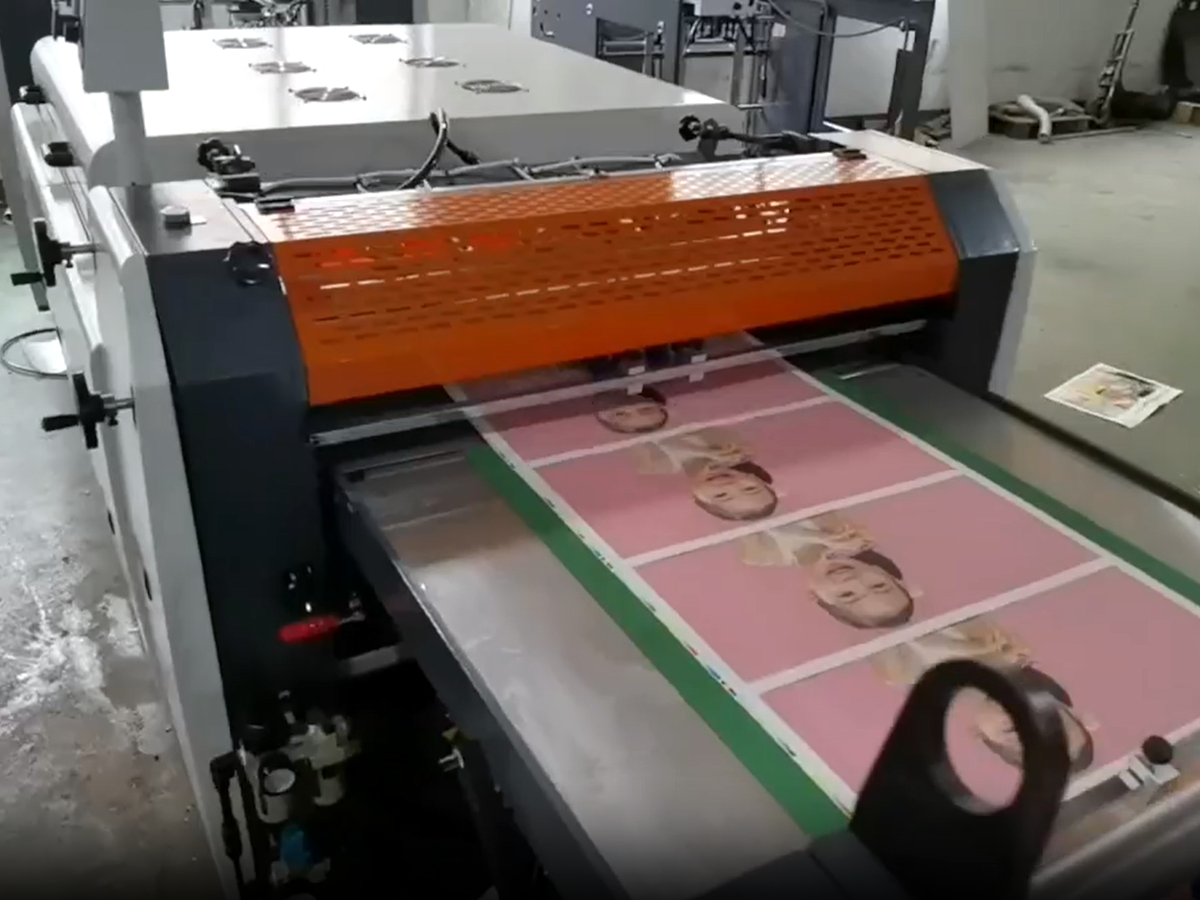

– Three-roll coating method, ensuring no lines or orange peel on the coating surface
– Variable frequency speed regulating motor, offering stable performance
– Touch screen control for simple operation
– Automatic medium-sized paper feeder for stable and reliable paper feeding
– Unique bottom roller automatic cleaning system and double oil pan device prevent the oil from drying out during shutdown
– Suction device in the bridge section prevents paper skewing
– Diaphragm pump reduces cleaning work during oil changes
– The conveyor belt uses a Teflon mesh belt with an underlying suction system for smoother paper feeding and an automatic correction system
– Standard configuration includes 1 UV and 6 IR lamps, an oven with temperature probes for constant temperature control, saving electricity, and an automatic temperature control system

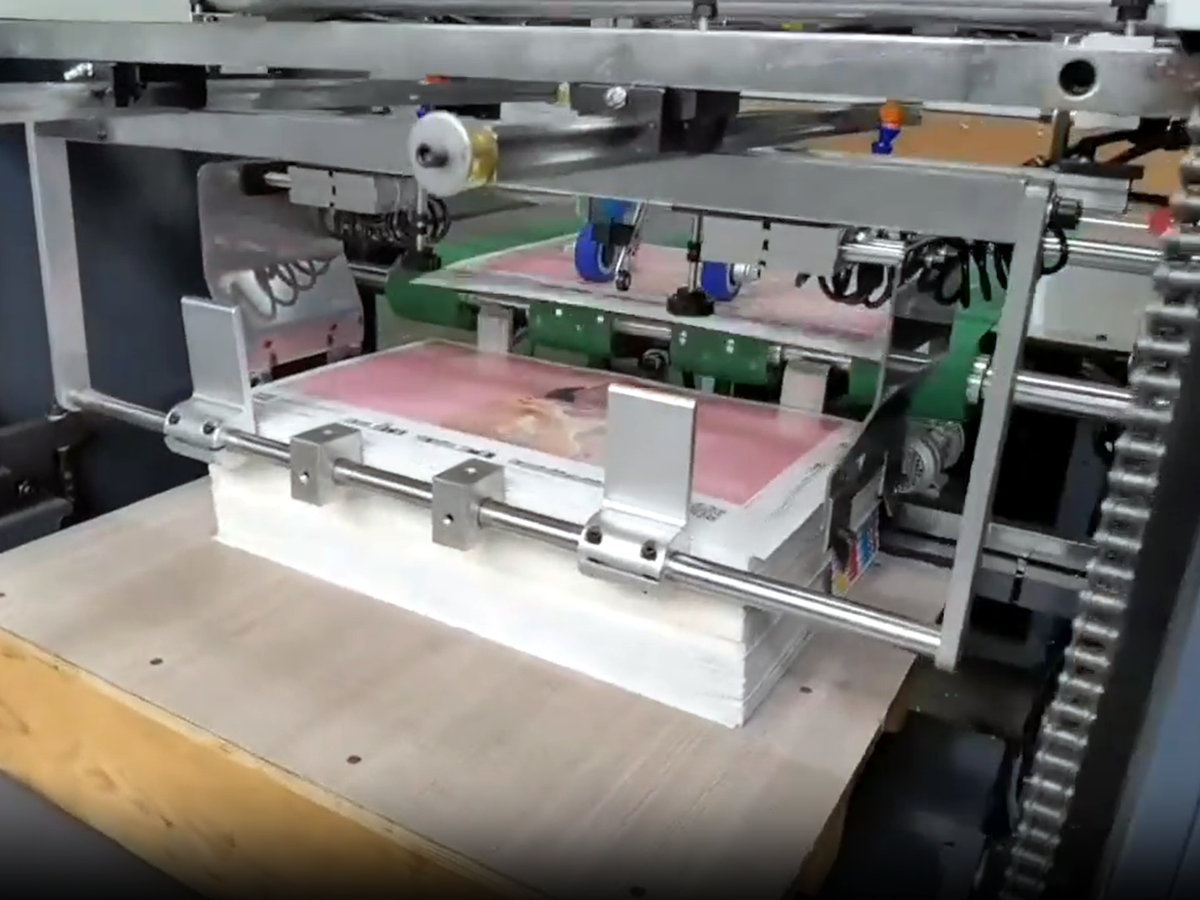

– The auto stacker operates independently and uses pneumatic paper patting

Conditie  gebruikt
Levertijd uit voorraad
