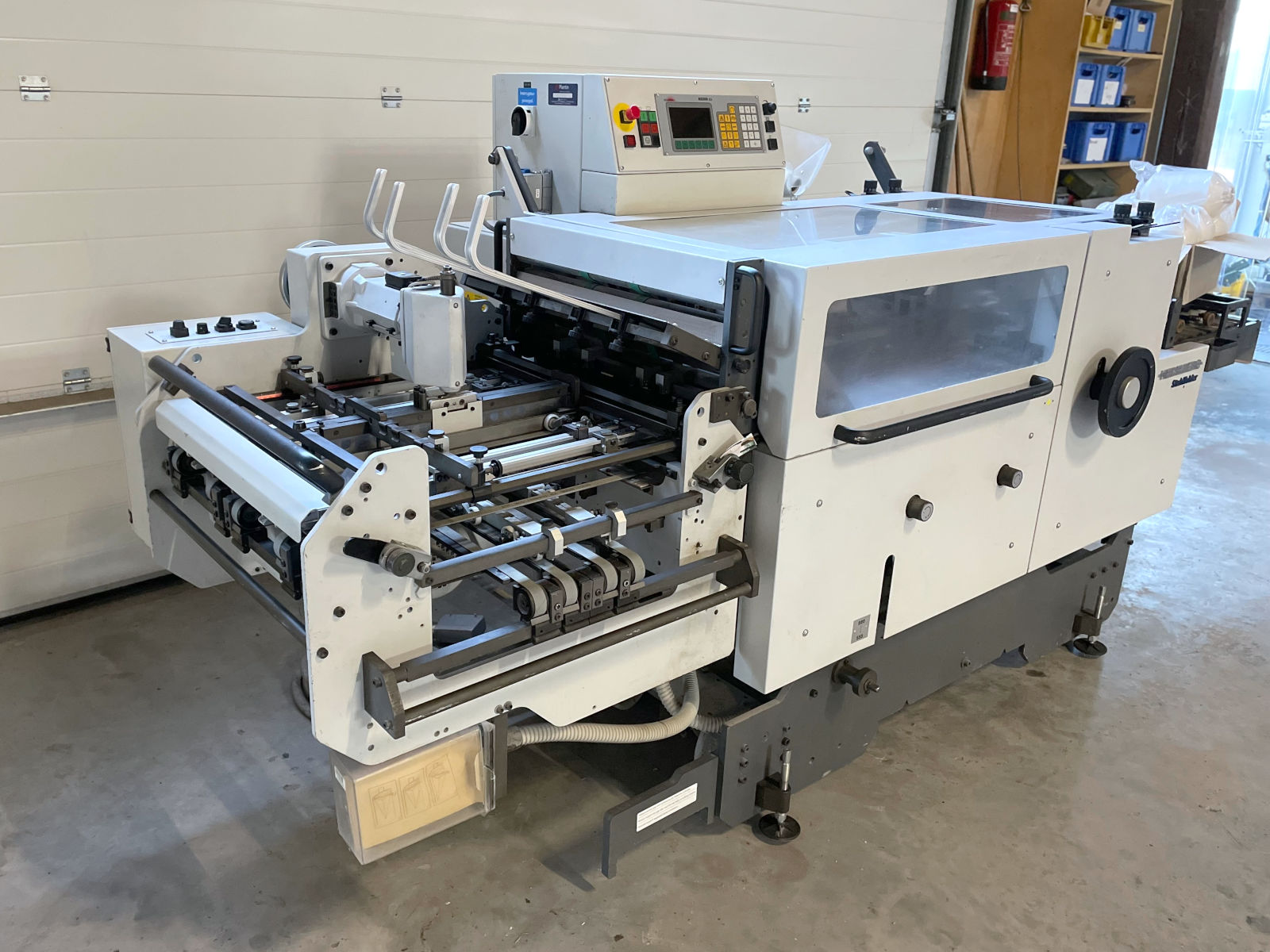

Heidelberg FS 100/56 thread sealing machine

Referentie  2610319/2
Bouwjaar  2001
Specificaties

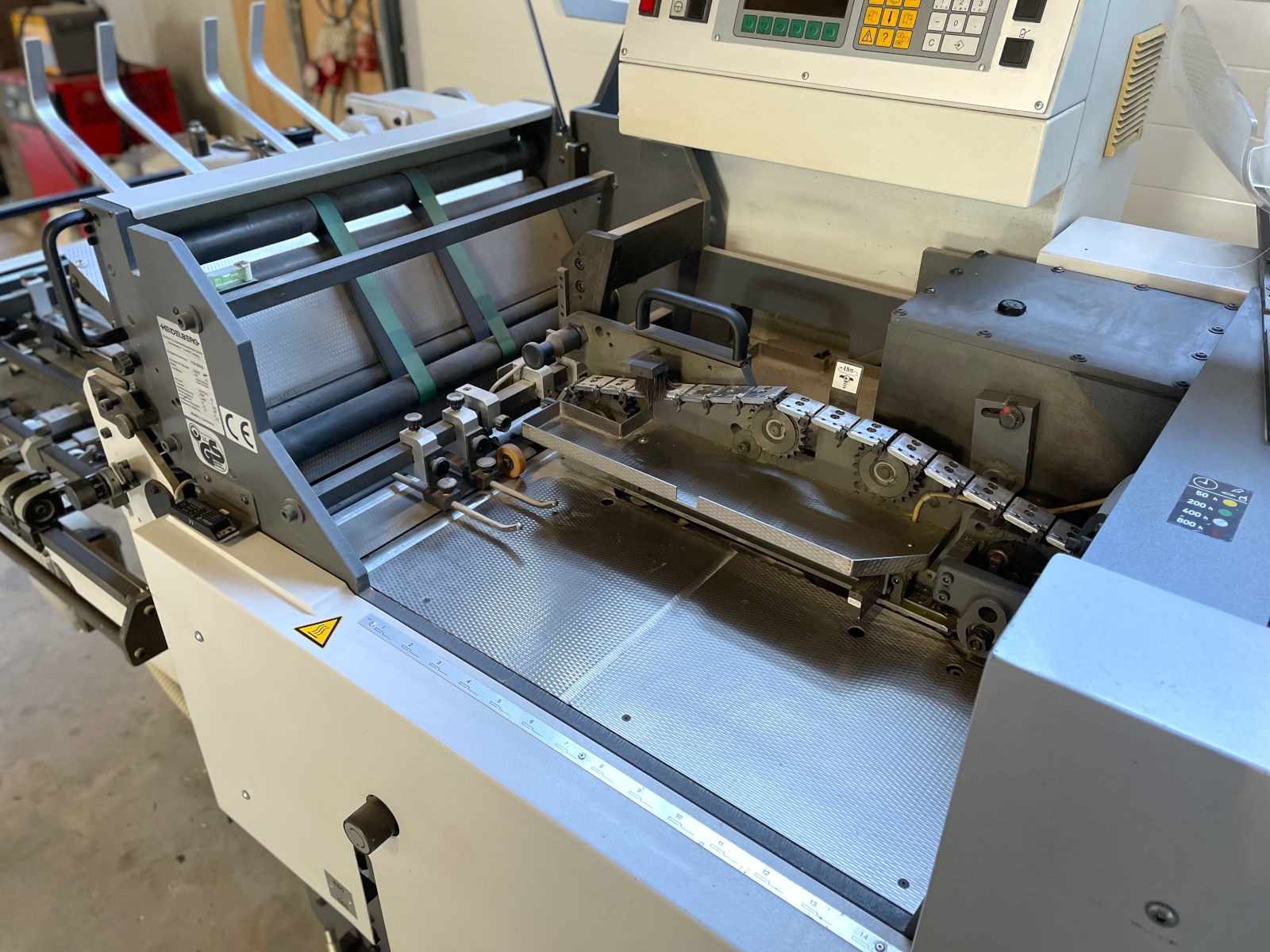

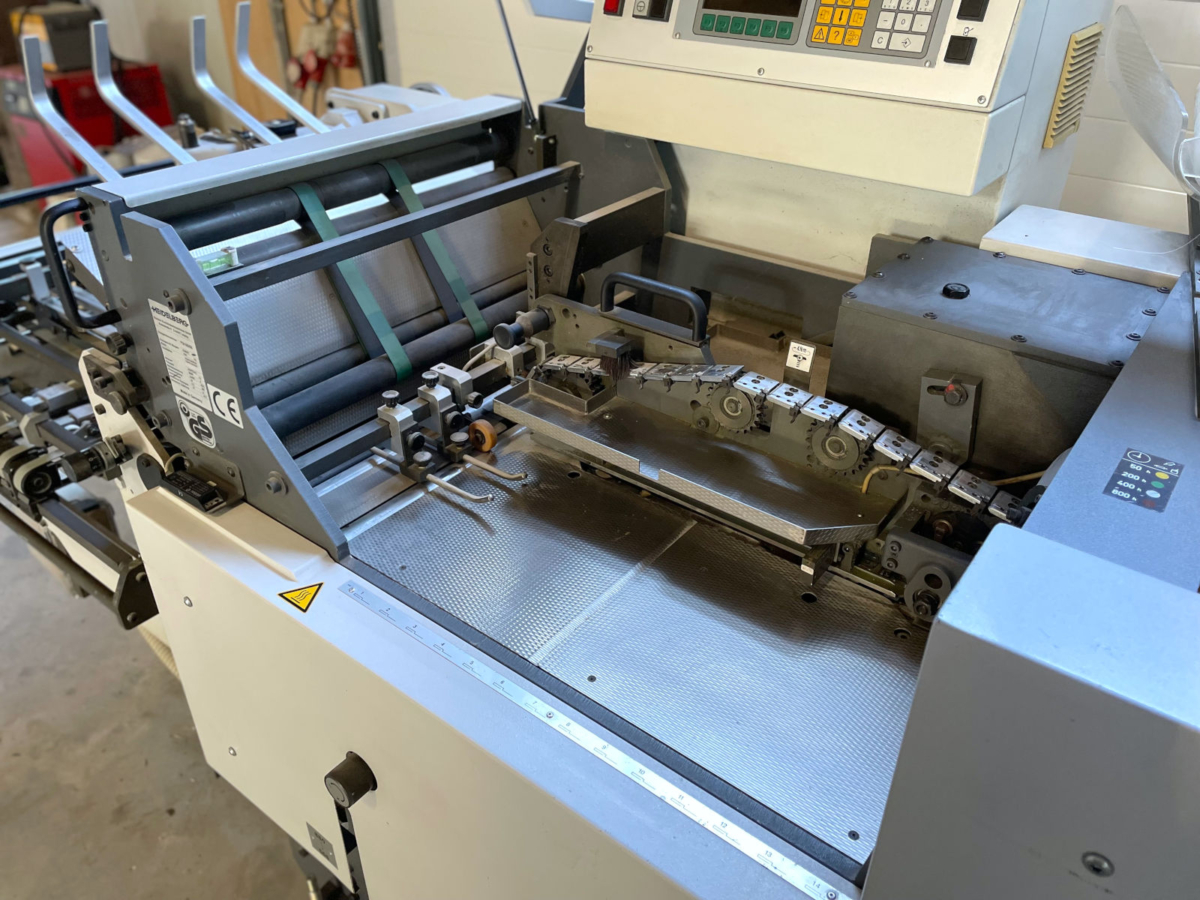

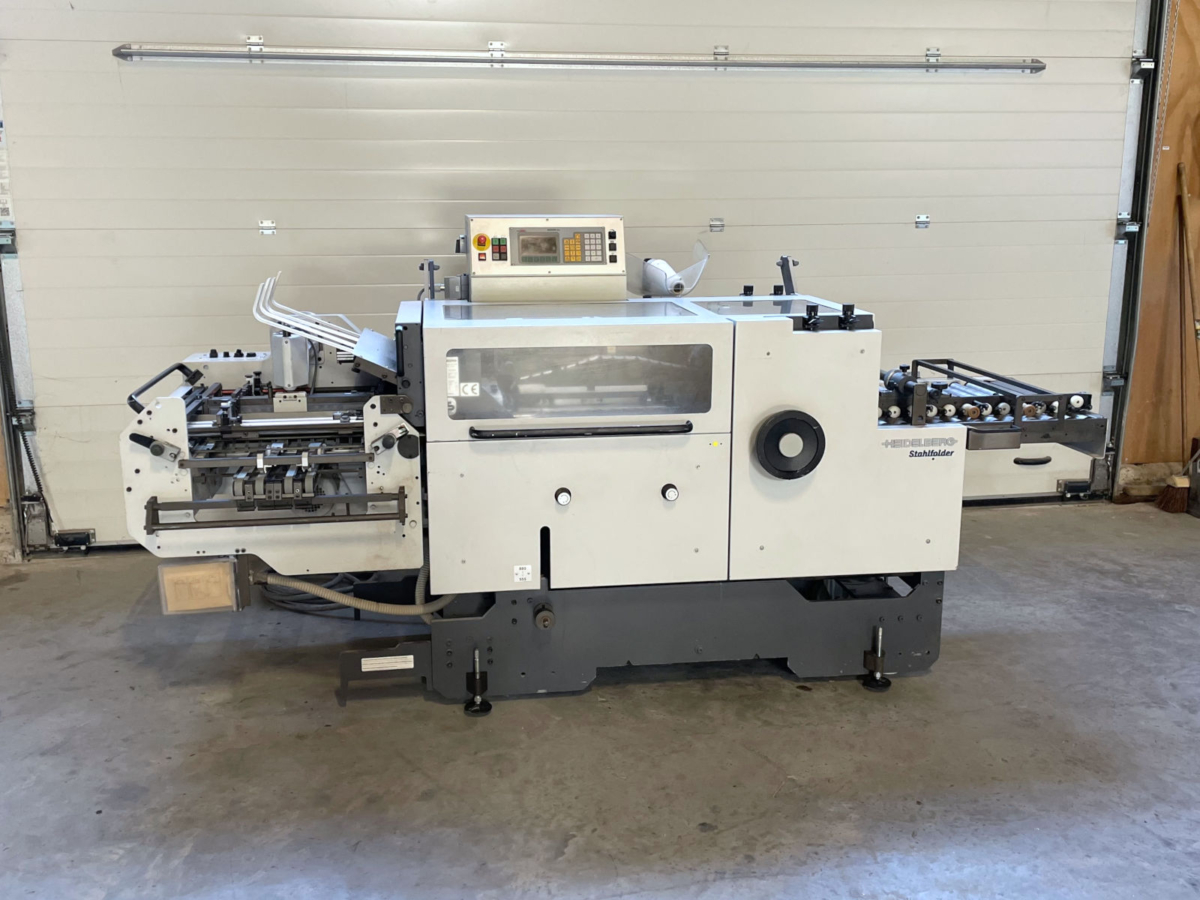

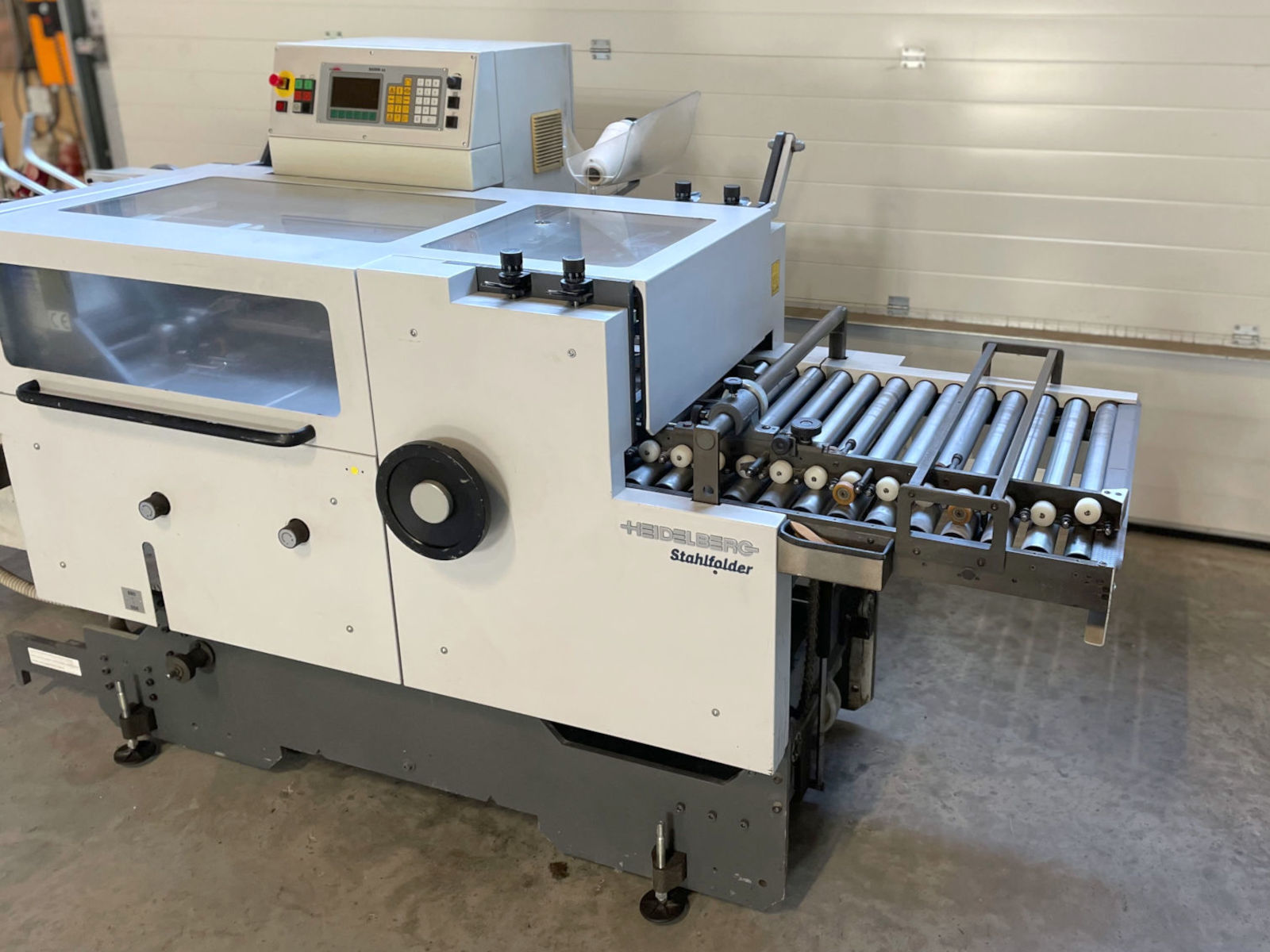

Heidelberg Stahl thermo thread sealing machine type FS 100/56

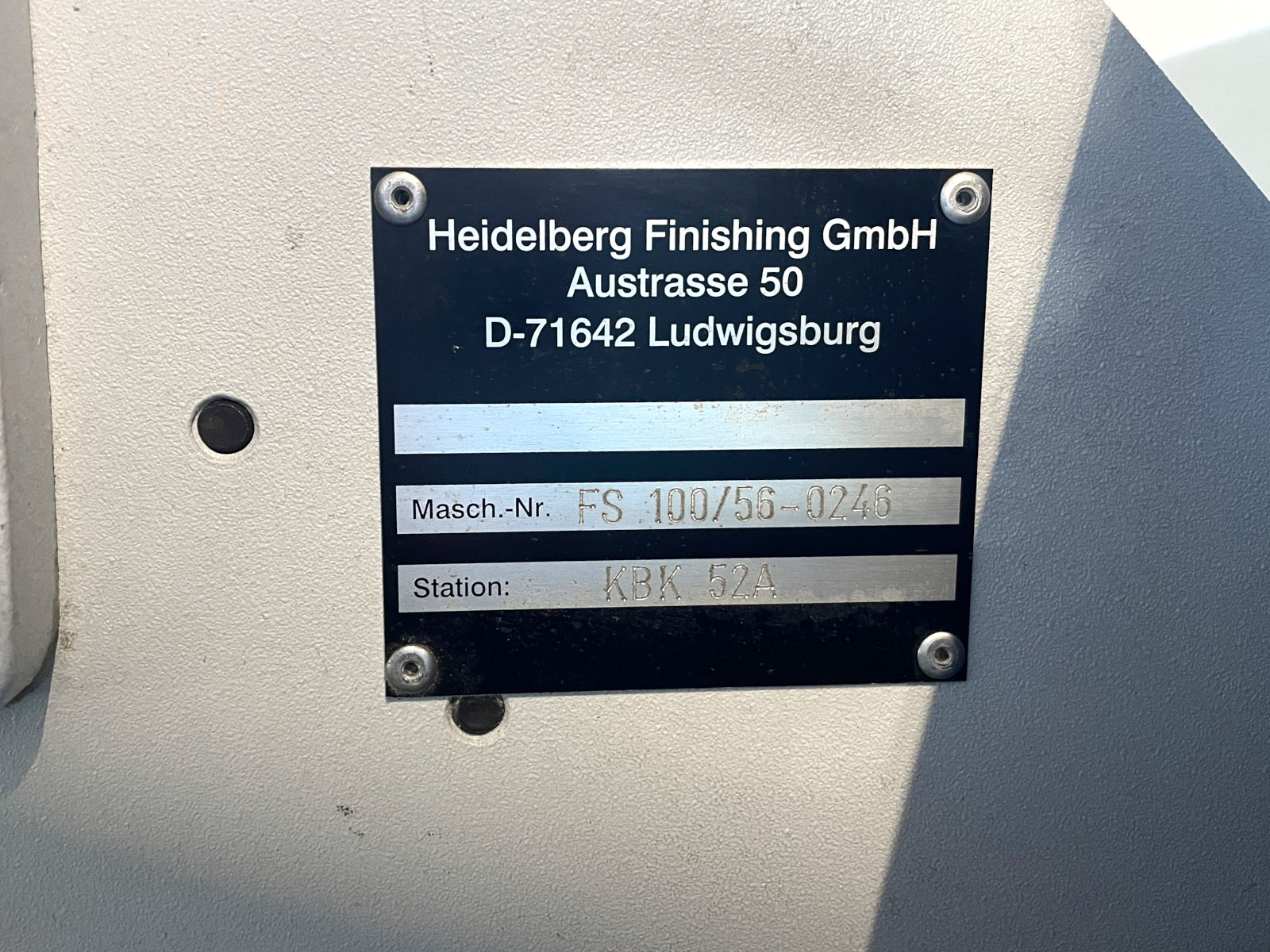

Uitgerust met messlag unit KBK52A

Technical details
Speed 100 m/min
Max. size unfolded 560 x 550 mm
Max. size folded 280 x 550 mm
Min. size unfolded 180* x 145 mm
Min. size folded 90 x 145 mm
* Min. infeed width can be 150 mm, when format length is larger than 200 mm
Number of thread clips per signature 2-14

Paper weight
For 8-, 12- and 16-sheet signatures 50 – 140 gsm
For 24- and 32-sheet signatures 50 – 100 gsm
Max. puncture thickness 1 mm

Technical details KBK 52 A
Working width max. 52 cm
Sheet length max. 42 cm, trimmed 38 cm
Size min. 12 x 4 cm (without slitter shaft) 16 x 4 cm (trimmed)
Speed 25 – 180 m/min

Conditie  gebruikt
Levertijd uit voorraad
